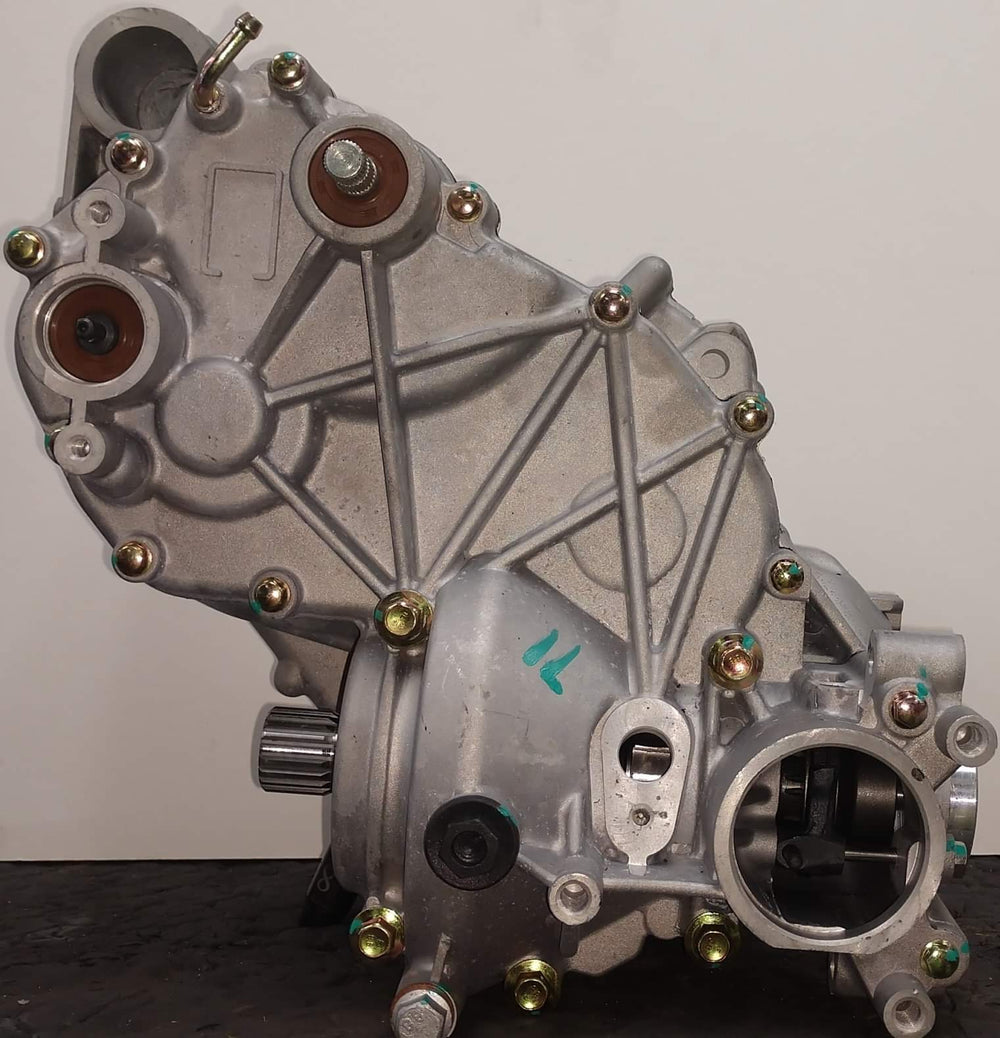

Canam G2 (6X6) gearbox (3 day build time then transit )
💥 GENERATION GEARBOX HAS NOTHING TO DO WITH THE GENERATION CHASIS YOU HAVE 💥
Gen 2 gearboxes with 6x6 gear ratio. Complete gearbox minus sensors and actuator. 100% all brand new, NOT rebuilt. These have a 14% reduction in high range and 28% in low range. If your machine has a small gearbox these will not fit. If your machine has a g2 big gearbox the this is a DIRECT FIT. Will fit ALL original Mavericks, Commanders and gade 1000s for sure. Will fit others as well. Any machine that uses the large gearbox these will fit. Just swap over your sensors and the little backplate stud on the clutch side, fill with oil and go! We only use Lucas full synthetic 75-140. No returns on gearboxes once shipped. No warranty. Nor cancelations. They're built to order. THESE ARE ONLY ASSEMBLED WITH TIMKEN Bearings! No core required.
PROFESSIONAL INSTALL HIGHLY RECOMMENDED!
*GEARBOXES SHIPPED IN NEUTRAL *
*note picture #2*
Make sure when you screw your 4x4 switch in that it makes contact with the arm. Sometimes the switch maybe be a tad short. Simple quick fix. Just above the threads on the switch it is beveled, just trim the bevel off with a box knife then screw the sensor back in. Very easy.
*must swap the small stud on the clutch side over too *
