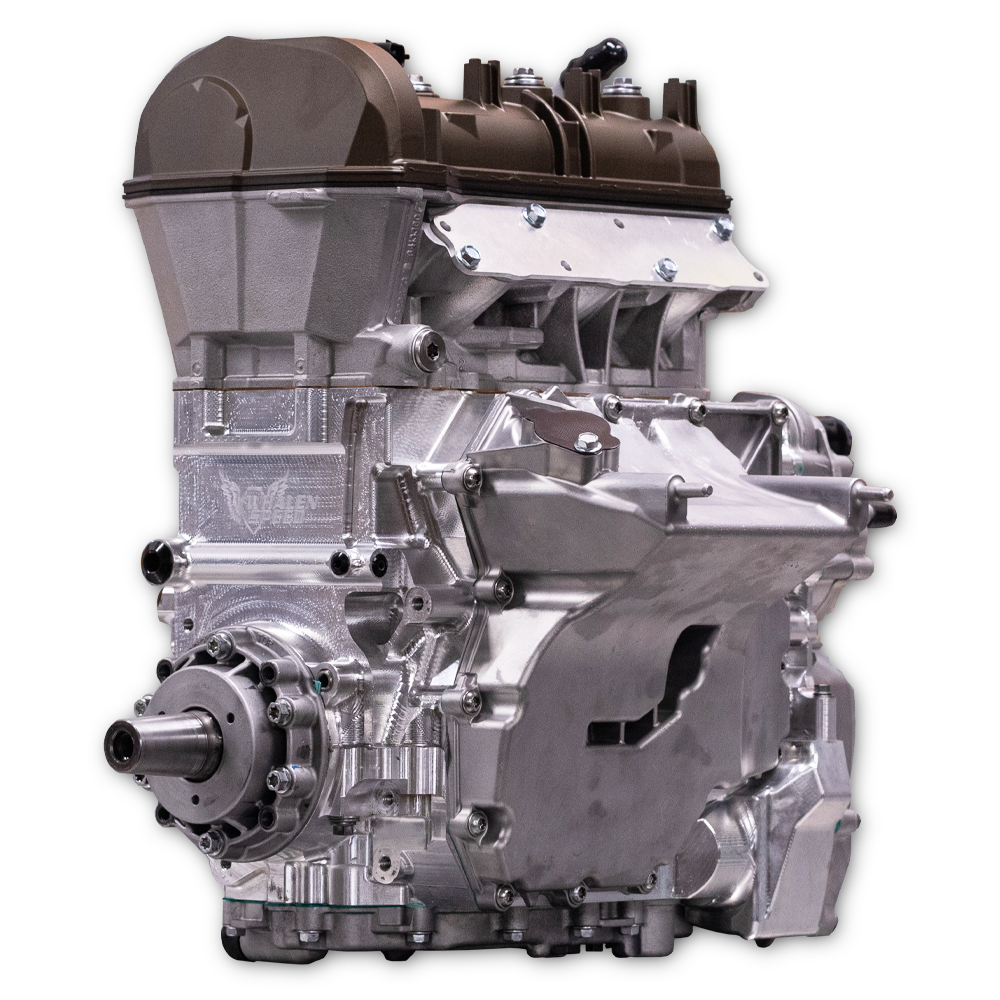

WSRD V5 Billet Block Long Block Assembly Engine Package | Can-Am X3 & Ski-Doo (Rated for 650+HP)
Whalen's Speed R&D - 161 Commercial Avenue, Paw Paw, MI 49079
What's Included?
WSRD V5 Billet Block Short Block Assembly Package
- WSI Billet Engine Block
- WSI Billet Engine Girdle
- WSI MID Sleeve & Install Service
- WSRD Ultimate - Big Pin Piston Set
- WSRD Ultimate - Big Pin Connecting Rod Set
- WSRD Ultimate Copper Head Gasket & O-Ring Service
- WSRD 7/16 Ultimate Head Stud Set
- WSRD Crankshaft Balance Service
- WSRD Terminator Main Stud Set
- WSRD Ghost Billet PTO Cover (Includes new PTO Bearing and Seal)
- New OEM BRP Connecting Rod Bearings
- New OEM BRP Main Bearings
- New OEM BRP Thrust Washers
- New OEM BRP Oil Sump Rotor Assemblies
- WSI Engine Block Bore & Hone Service
- WSI Engine Block Main Bore & Hone Service
- WSRD Vapor Hone Cleaning Service
- WSI Block Decking Service
- WSRD Short Block Assembly Service
WSRD V4 CNC Ported Cylinder Head Package (V4 Ported Combustion Chamber)
- WSRD V4 CNC Cylinder Head Porting
- WSRD +1mm Intake Valves - 30mm
- WSRD +1mm Exhaust Valves - 26mm
- WSRD Solid Bucket Valve Spring Kit - Includes Titanium Retainers
- WSI 7/16 Head Stud Conversion Service
- WSI Cylinder Head Decking Service
- WSI Cylinder Head Valve Job Service
- WSRD Vapor Hone Cleaning Service
- WSRD Cylinder Head Assembly Service
- WSRD Solid Bucket Conversion Configuration/Assembly
- Your Choice of Camshaft (Additional Cost)
WSRD Long Block Engine Assembly includes the following;
- New OEM BRP Timing Chain
- New OEM BRP Timing Chain Guide Set
- New OEM BRP Timing Chain Tensioner & Spring
- New OEM BRP Engine Gasket Set
- WSRD Long Block Assembly Service
- (2) Water Pump Drive Gears
- (4) Oil Pump Drive Gears
- Flywheel to Crankshaft Bolt
- Flywheel to Crankshaft Washer
Service Bundle 2 - What's Included? (Adds $319)
- Includes all listed Bundle 1 products above
- Oil Cooler
- Water Pump Impeller
- Small Water Pump Seal
- Large Water Pump Seal
- Because this engine package features a complete billet block assembly, the end user is to supply the following; complete cylinder head assembly including camshaft housing assembly, camshafts and valve cover, crankshaft, oil sump rotor assemblies and housing parts, and oil sump/oil pan.
All WSRD Long Block Packages REQUIRE the above listed engine core(s) to be received from the end user shipped to the WSRD facility address also listed above. Once the client cores arrive at WSRD's facility they will go through a teardown and inspection process. Once this is completed the client will be communicated with on any additional services, or hard parts that may be required at an additional cost. Once these things have been communicated with the end user, and the final invoice or final invoice changes have been approved, WSRD will continue with the assembly process and published lead-time(s). If you have any questions on this process please call WSRD directly; 269.415.0040 - extension 1 for the Sales Department.
